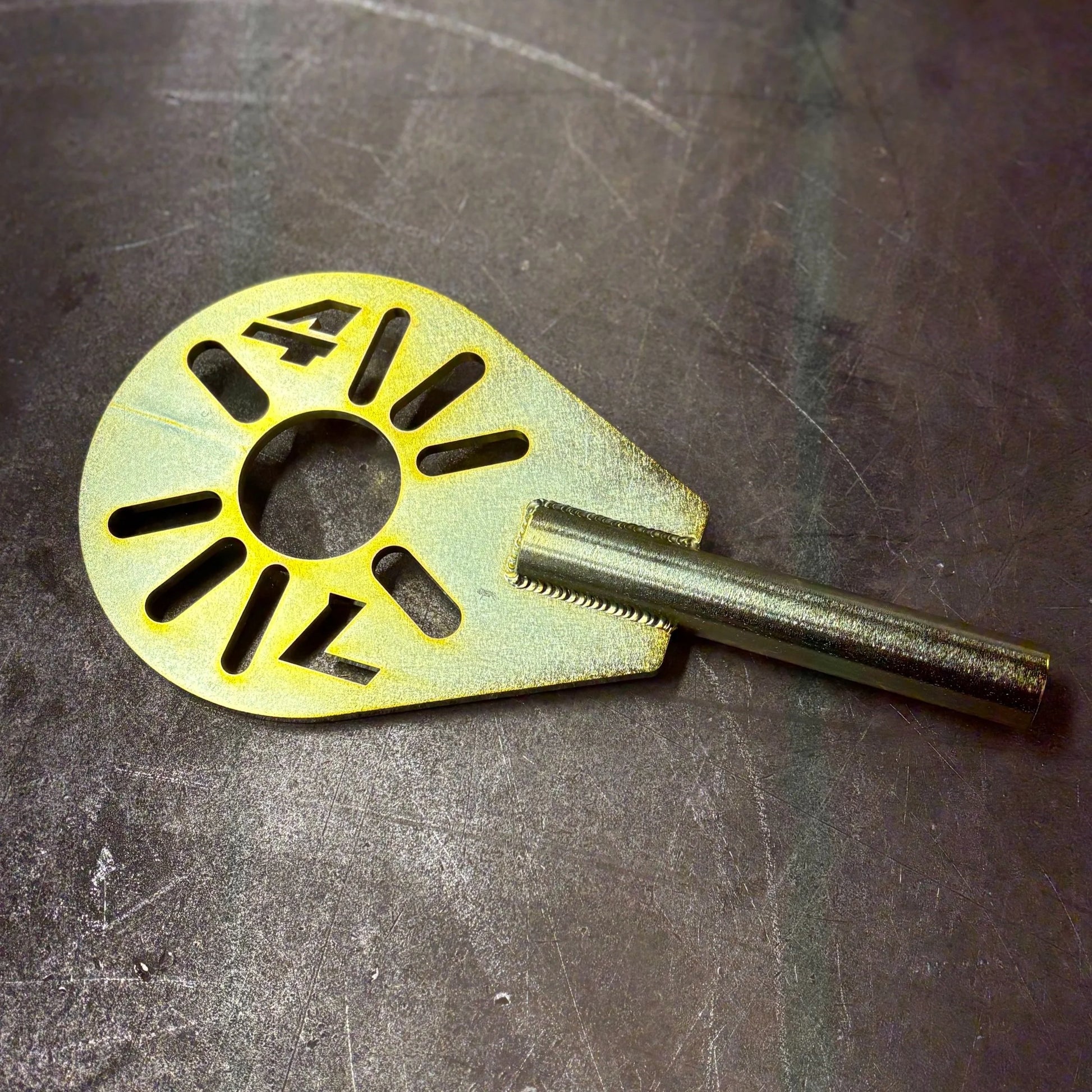

• 4Link4WD small pinion tool showing off it's golden glow of the zinc plating over top of the solid steel construction.

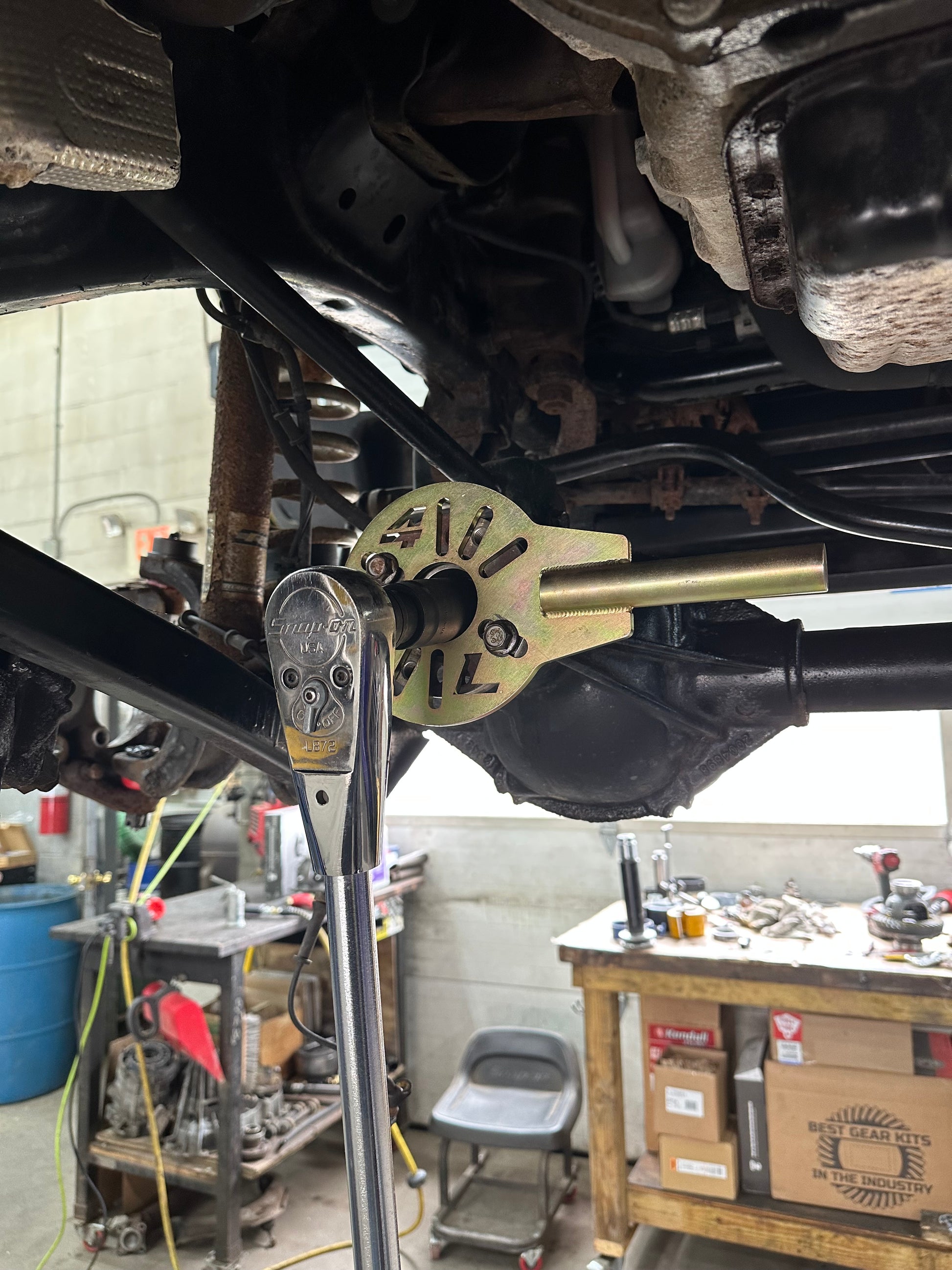

  • 4Link4WD small pinion tool being used on front Jeep JK differential Dana 30.

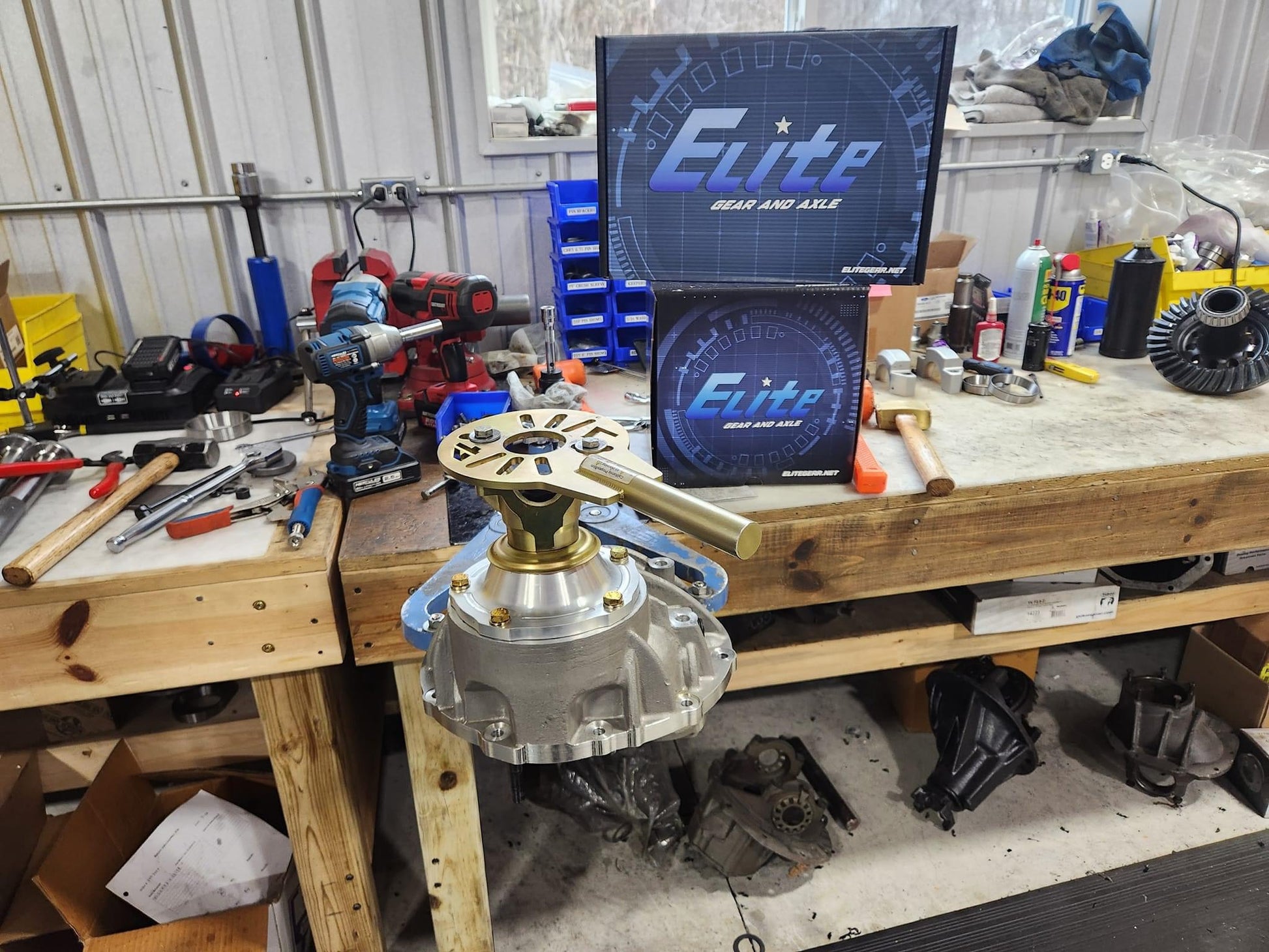

  • 4Link4WD small pinion tool being used on high performance 3rd member differential housing.

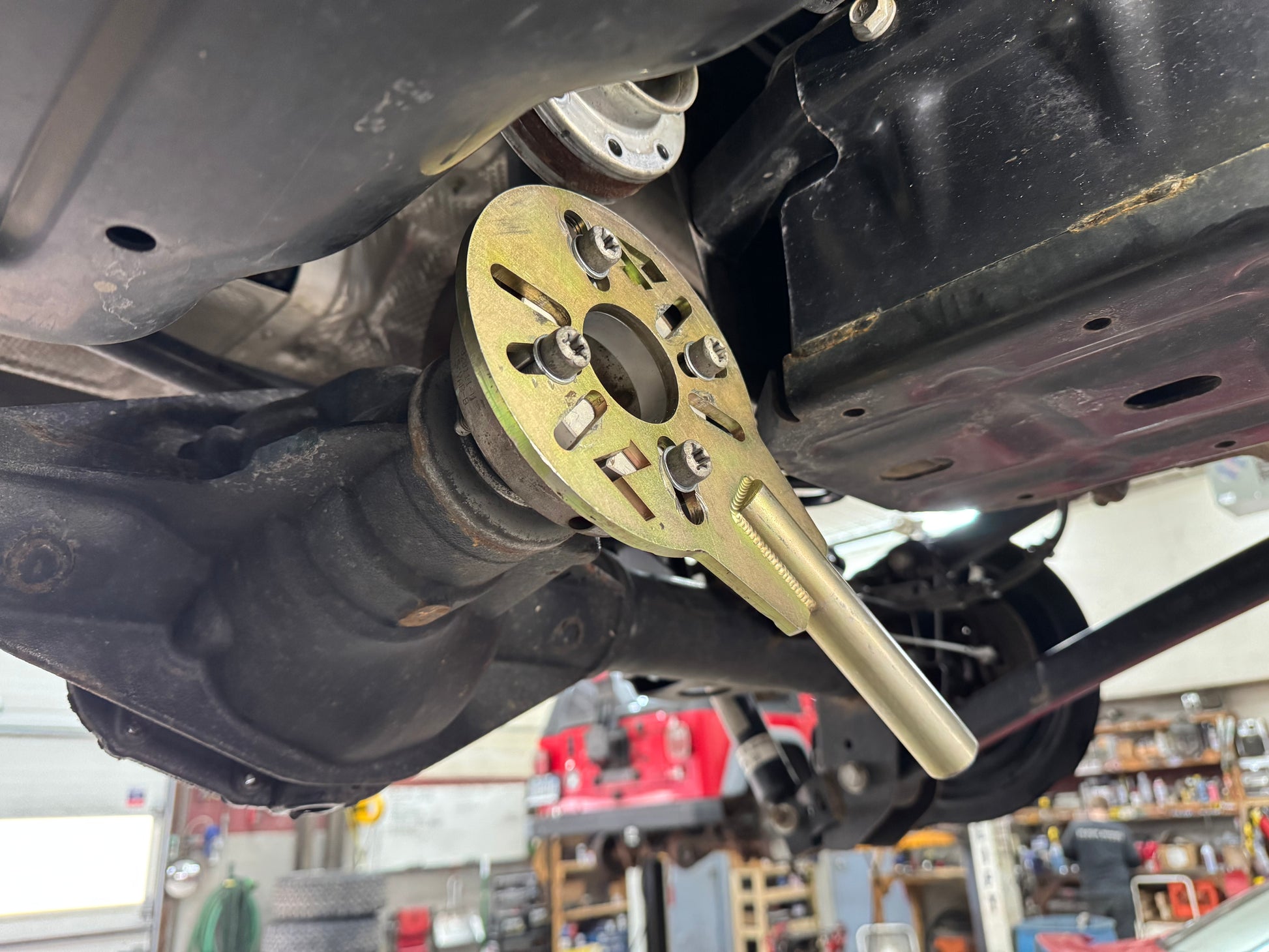

  • 4Link4WD small pinion tool with 4Link4WD JK / JL yoke adapter being used on factory pinion yoke.

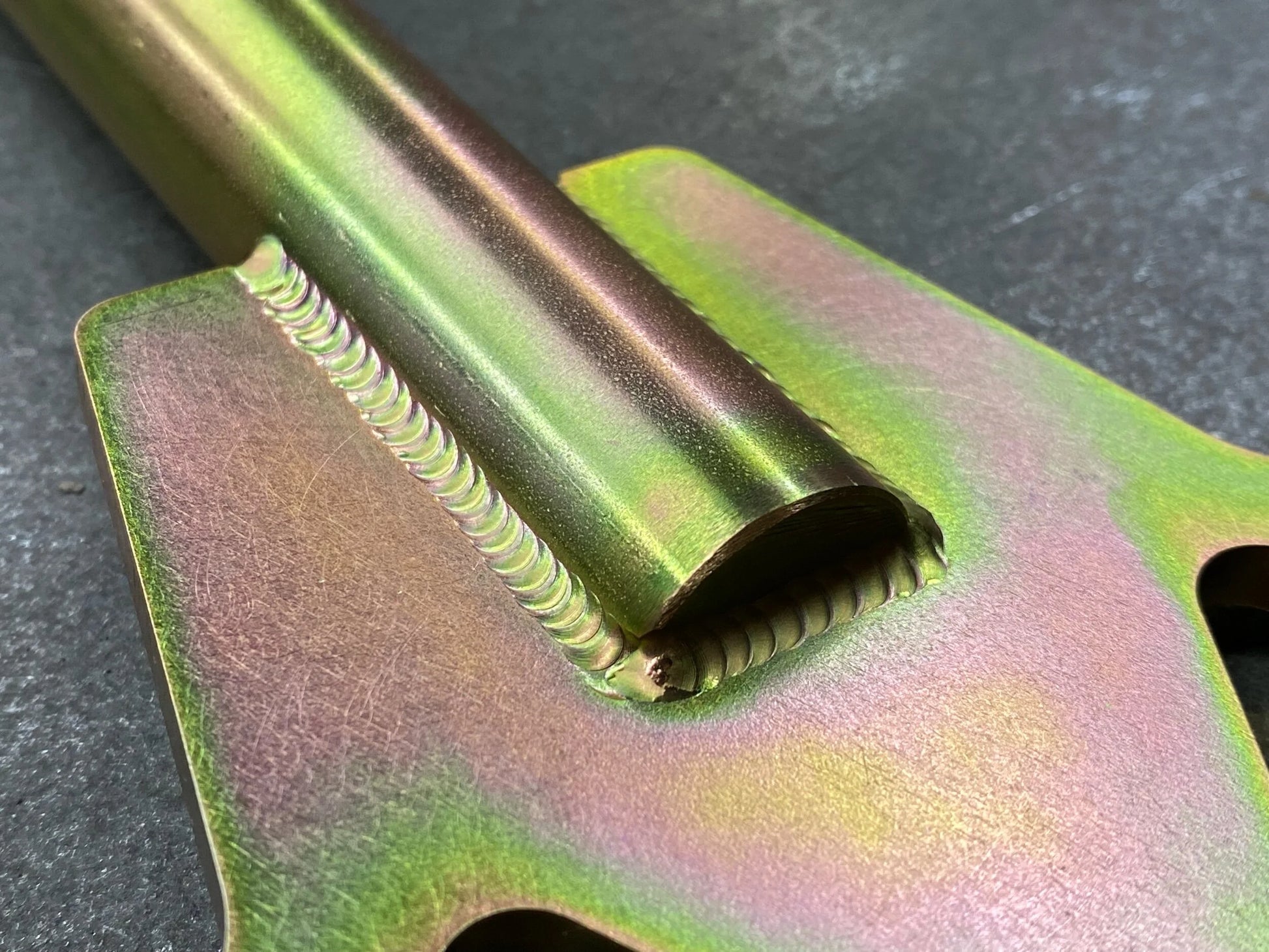

  • Close up of hand TIG-welded construction of 4Link4WD small pinion tool .

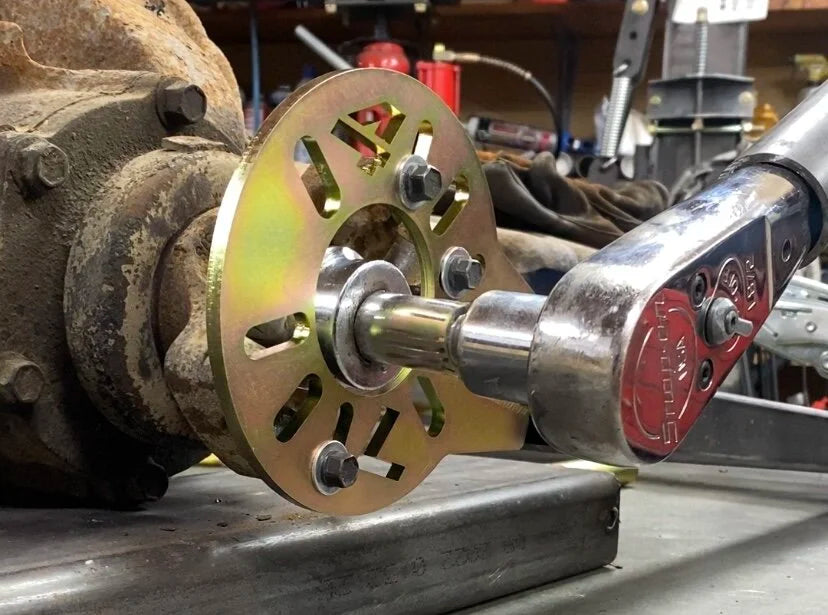

  • Photo of Chevy 14 Bolt rear differential when the Large 4Link4WD pinion tool was tested. The failure point was actually the threads of the pinion and nut which stripped. The pinion tool did not bend or break.
1 6

My Store

Small Universal Pinion Tool Yoke Holder – Differential Flange Holding Tool

Small Universal Pinion Tool Yoke Holder – Differential Flange Holding Tool

$119.00 USD
$119.00 USD
Sale Sold out
Hardware kit?
Stock Type

Ditch the pipe wrench—this small universal pinion yoke holder from 4Link4WD makes gear setup simple and precise. Built from solid steel and fully TIG welded, it’s made to handle crush sleeve torqueing without bending or breaking.

Fits perfectly into a floor jack handle or cheater bar for easy leverage.

Specs & Fitment:

  • 2” center socket hole

  • Fits Dana 30, 35, 44, 60, 70, Ford 8.8, Sterling 10.5, JK30, and more

  • Fits diagonal hole spacing from 2.65” to 4.85”

  • Ideal for yokes with pinion nuts 1-5/16” or smaller

  • Will not fit Dana 80 or 14 Bolt applications

Pro Tip:
Use washers and proper hardware for thread engagement. Pair this tool with a 3/4” drive breaker bar (Harbor Freight version works great) to crush sleeves safely.

View full details
